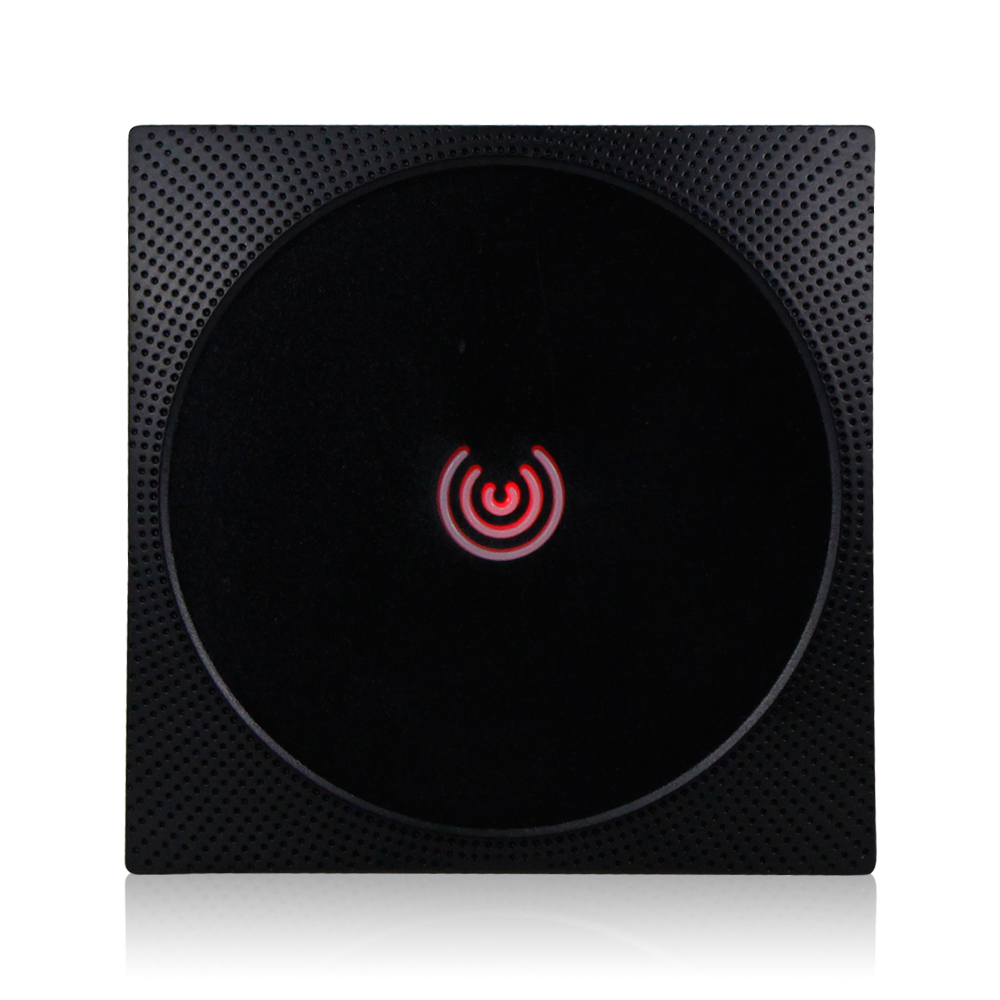

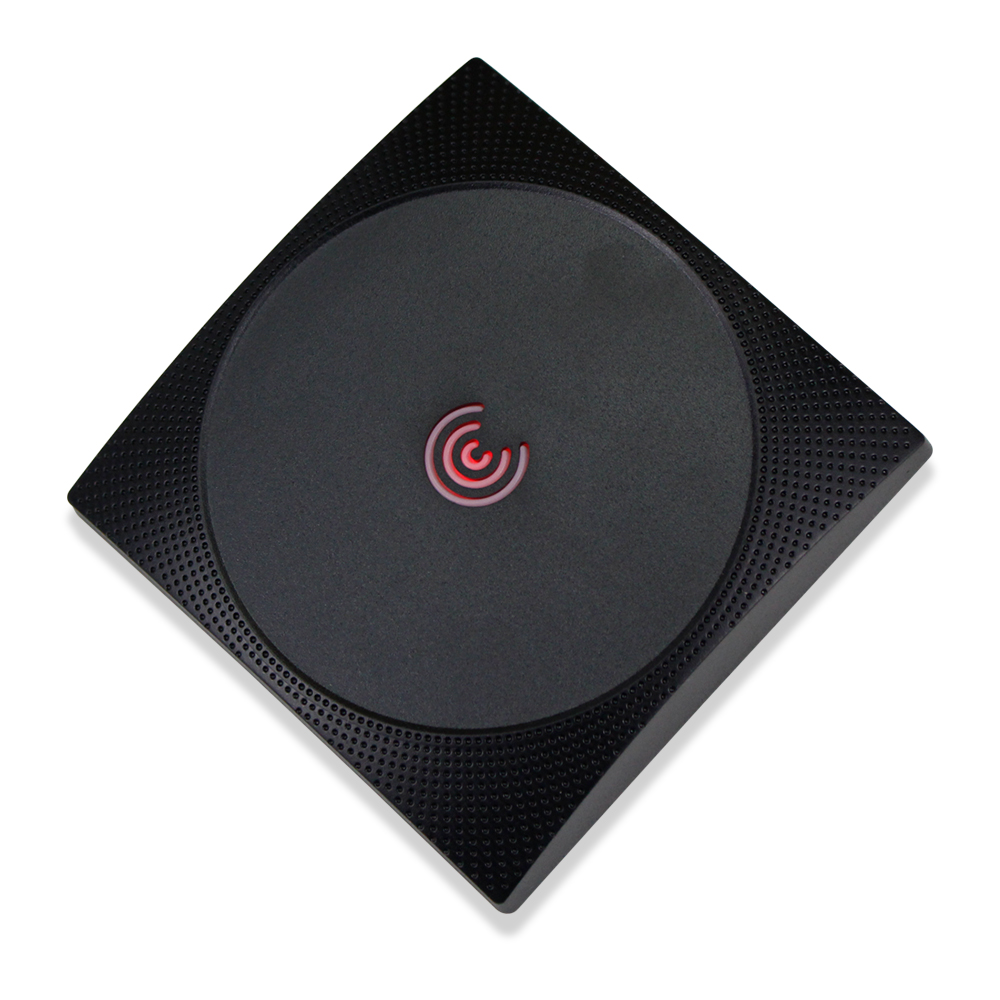

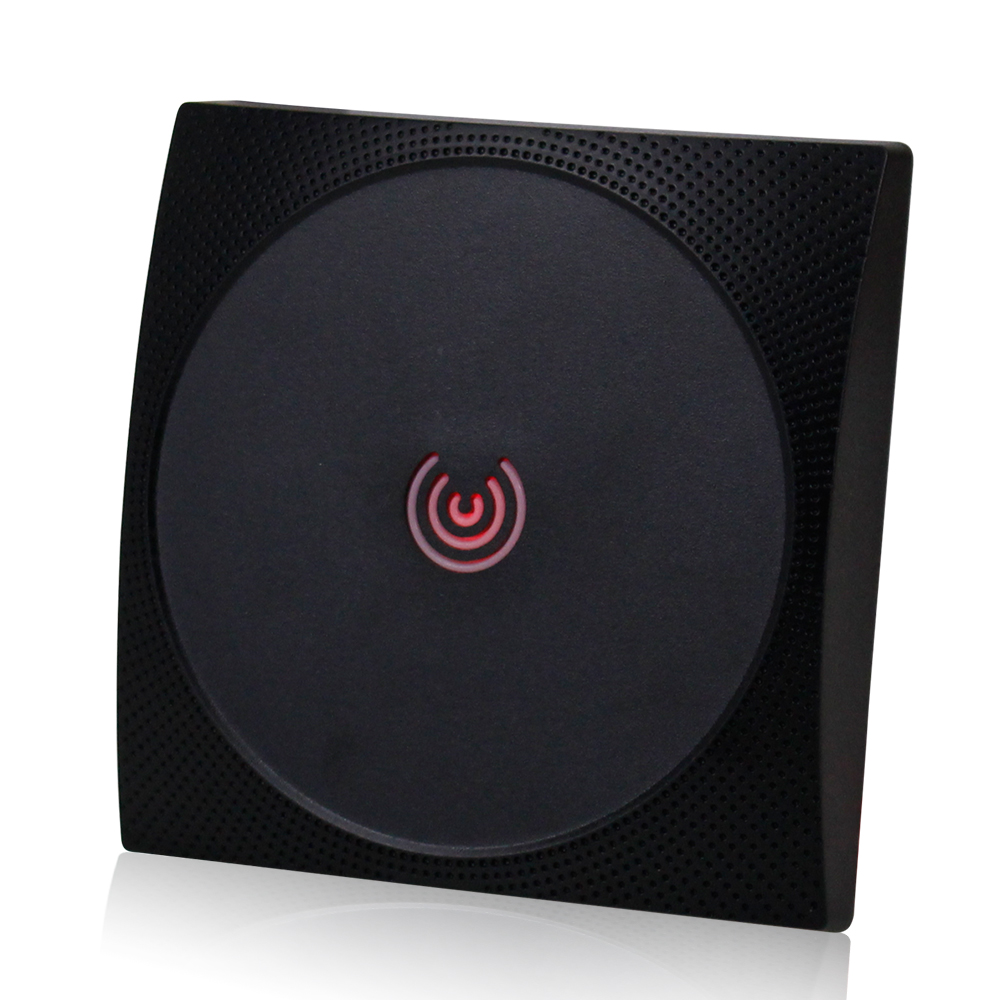

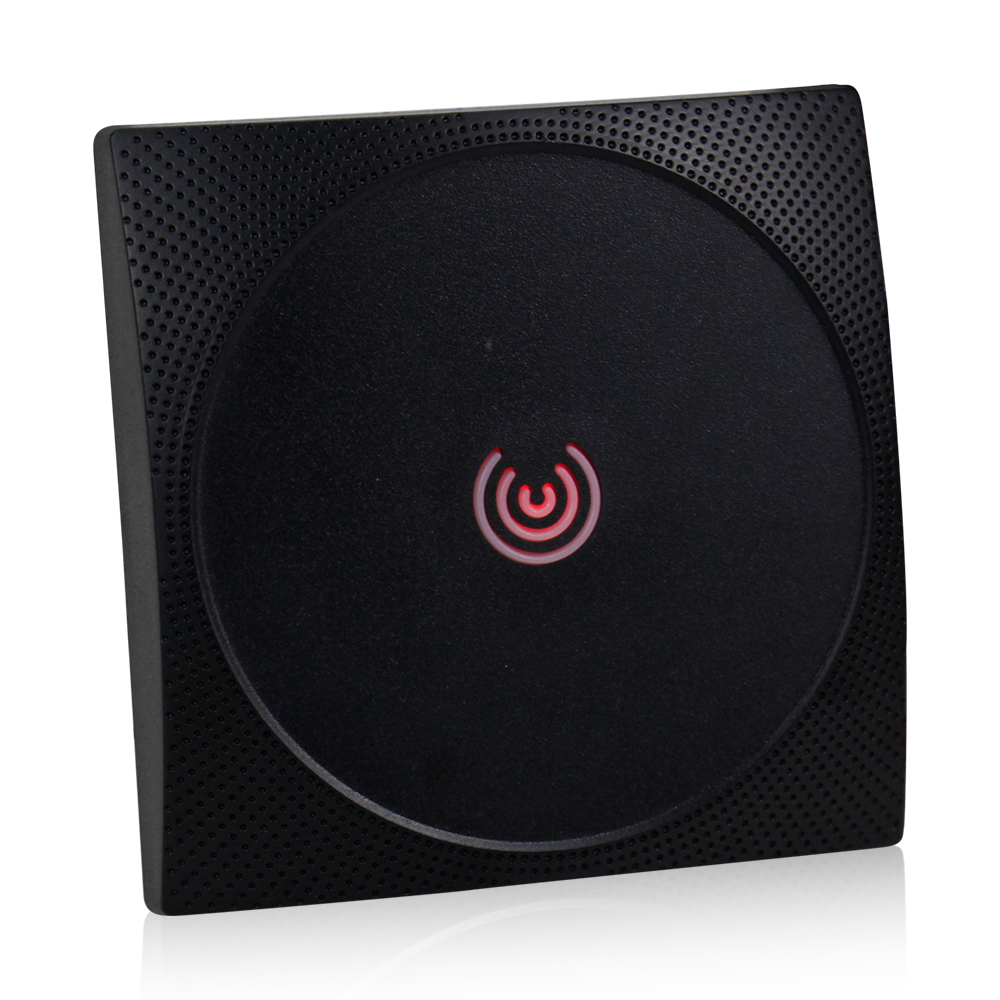

KR601 Card reader

Product description:
INQUIRY

Product Features:
Proximity 125KHz /13.56MHz Card Reader
Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
34bit Wiegand code output
External LED Control
External Buzzer Control
Indoor / Outdoor Operation
Solid Epoxy Potted
Waterproof IP65
Reverse Polarity Protection

Product Specifications:
Read Range Up to 5 - 10CM
Reading Time (Card) <=300ms
Power / Current DC 6-14V / Max.70mA
Input Port 2ea (External LED Control, External Buzzer Control)
Output Format 34bit Wiegand (default)
LED Indicator 2 Color LED Indicators(Red and Green)
Beeper Yes
Operating Temperature -20° to +65°C
Operating Humidity 10% to 90% relative humidity non-condensing
Color Black
Material ABS+PC with texture
Dimension(W x H x T)mm 116*75*17.3
Waterproof level: IP65
