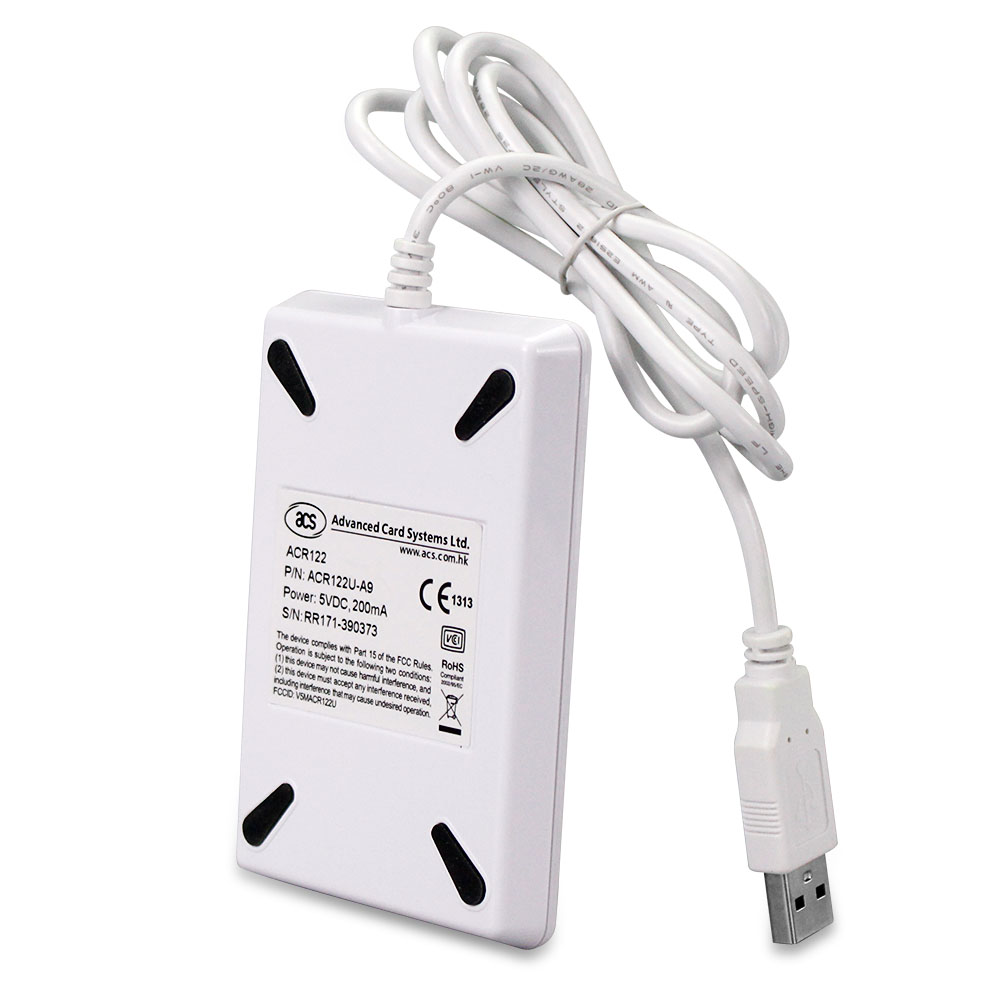

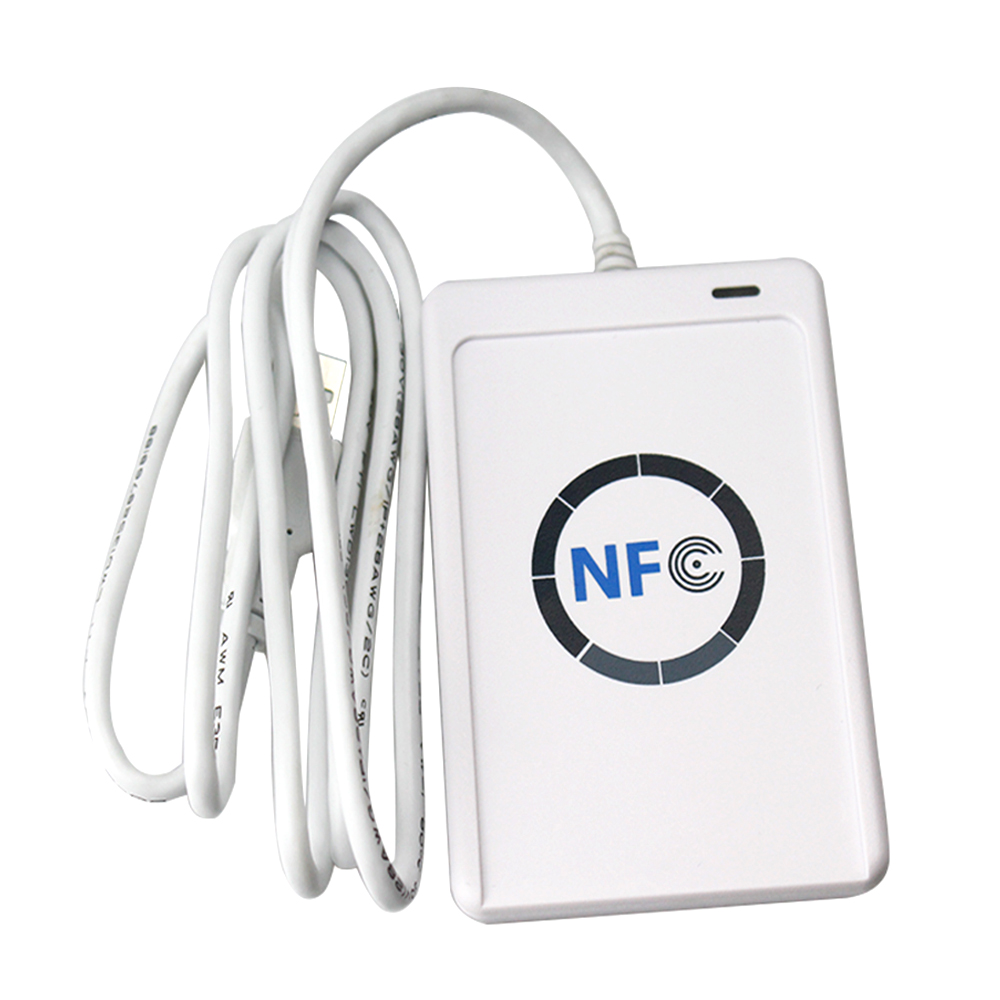

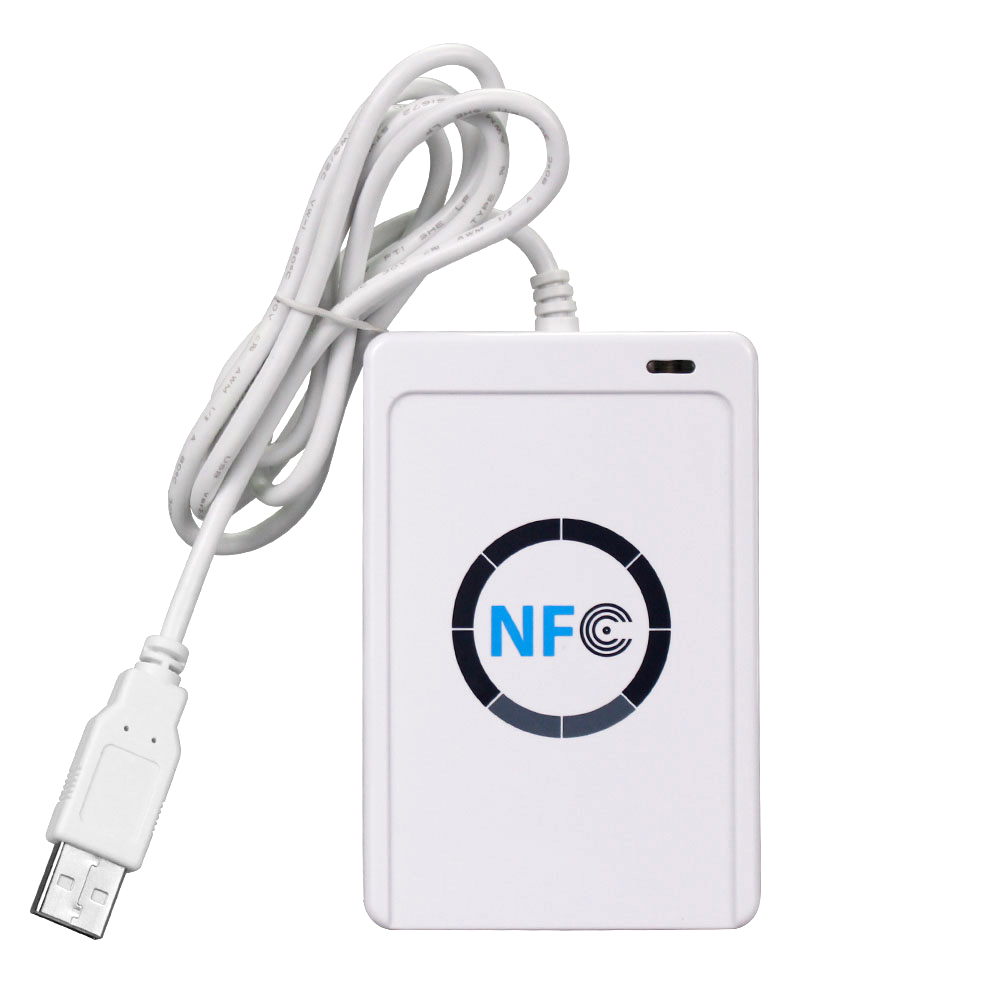

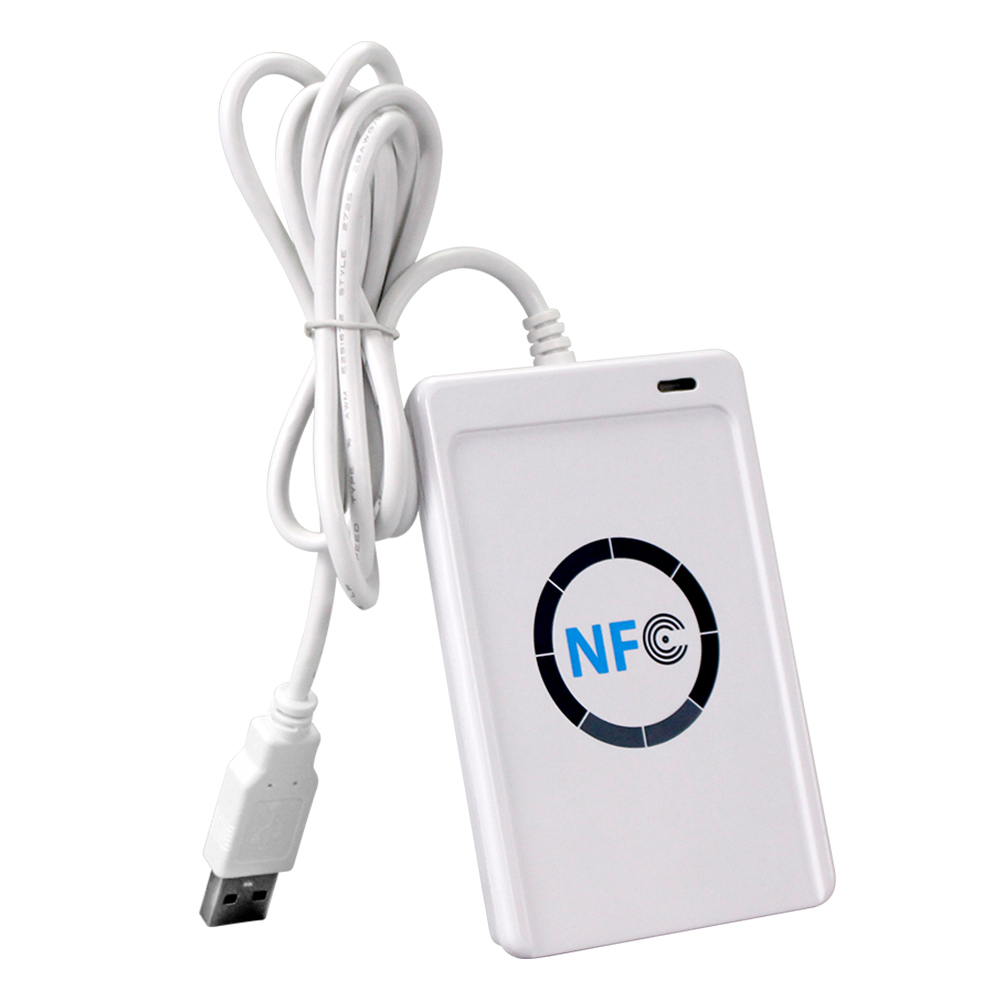

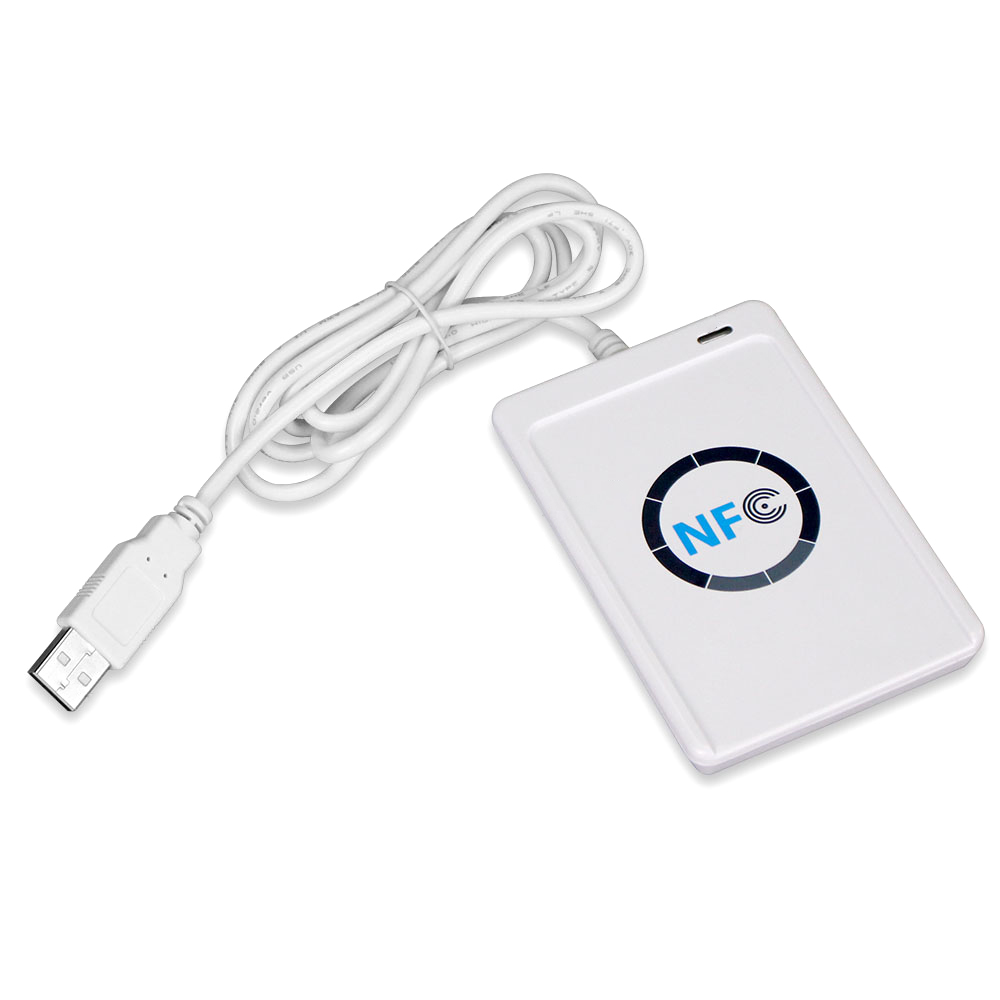

ACR122U

Product Feature

1. CCID-compliant
2. PC/SC-compliant
3. Read/write speed up to 424 kbps
4. Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
5. Supports ISO 14443 Type A and B, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
6. Supports new IC Ultralight C (via pseudo APDUs) and IC Plus SL1 (4 Byte UID, via pseudo APDUS) and SL3
7. Supports all 3 modes of NFC: reader, card emulation and peer-to-peer modes
8. Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)
9. User-controllable bi-color LED
10. Compliance / Certifications:   ISO 14443, CE, FCC, KC, VCCI, PC/SC, CCID, RoHS

Product Specification

Size: 98(L) x 65(W) x 12.8mm (H)
Interface: USB Full Speed
Operating distance: up to 50mm (depends on tag type)
Supply voltage: Regulated 5 V DC
Working current: 200mA
Standby current: 50mA
Normal current: 100mA
Operating Frequency: 13.56 MHz
Smart Card Interface Support: for ISO14443 Type A & B, Mi-fare, FeliCa, 4 types of NFC (ISO / IEC18092) tags
Support OS: 98 Win, Win ME, Win 2000, Win XP, Win Vista, Win 7, Windows Server 2003, Windows Server 2008,
Windows XP x64, Win Vista x64, Win 7x64, Win Server 2003x64, Win Server 2008x64, Win Server 2008 R2 x64, Windows CE 5.0, Linux

Product Applications

• Network access control
• Micro-payment
• NFC mobile tag
• Public transportation terminals
• Automatic fare collection
• Physical access control
• Customer loyalty
• Time and attendance
• Contactless public phones
• Vending machines
• etc...
