5/6 Wires Electric Electronic Bolt Mortise Lock

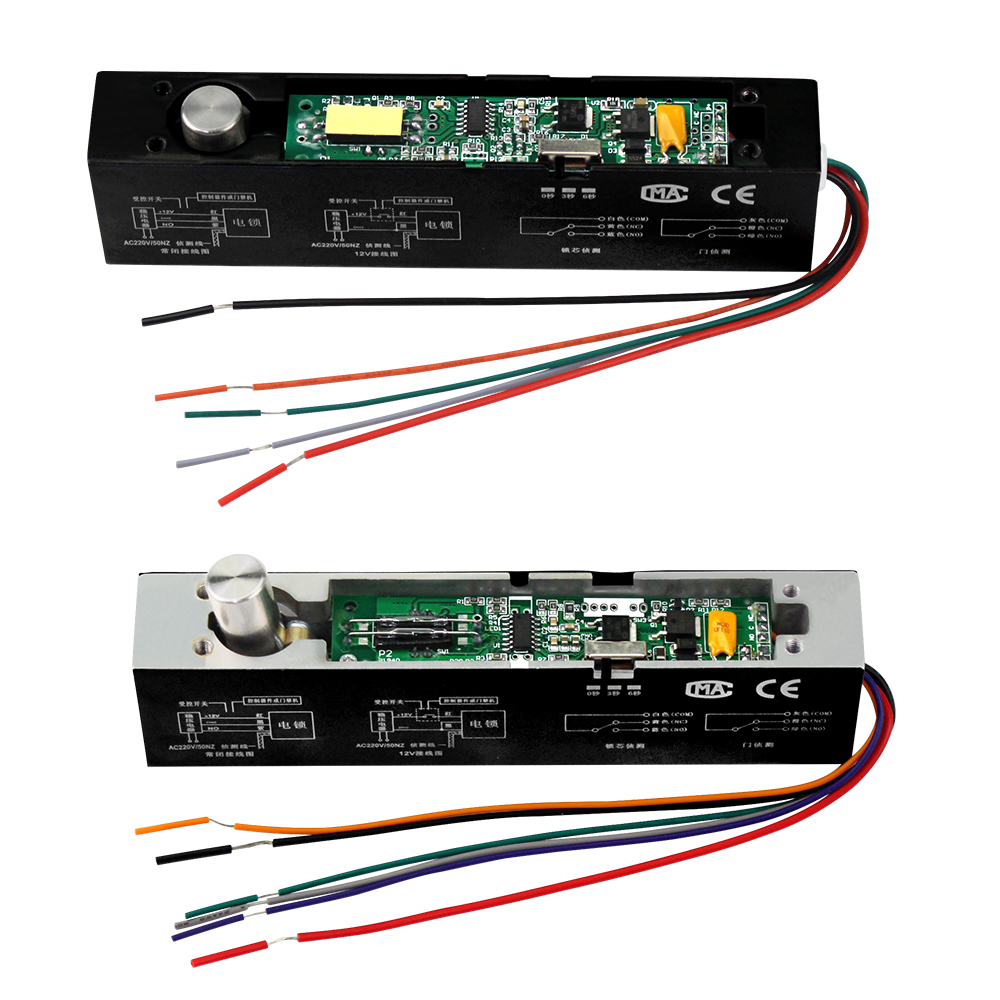

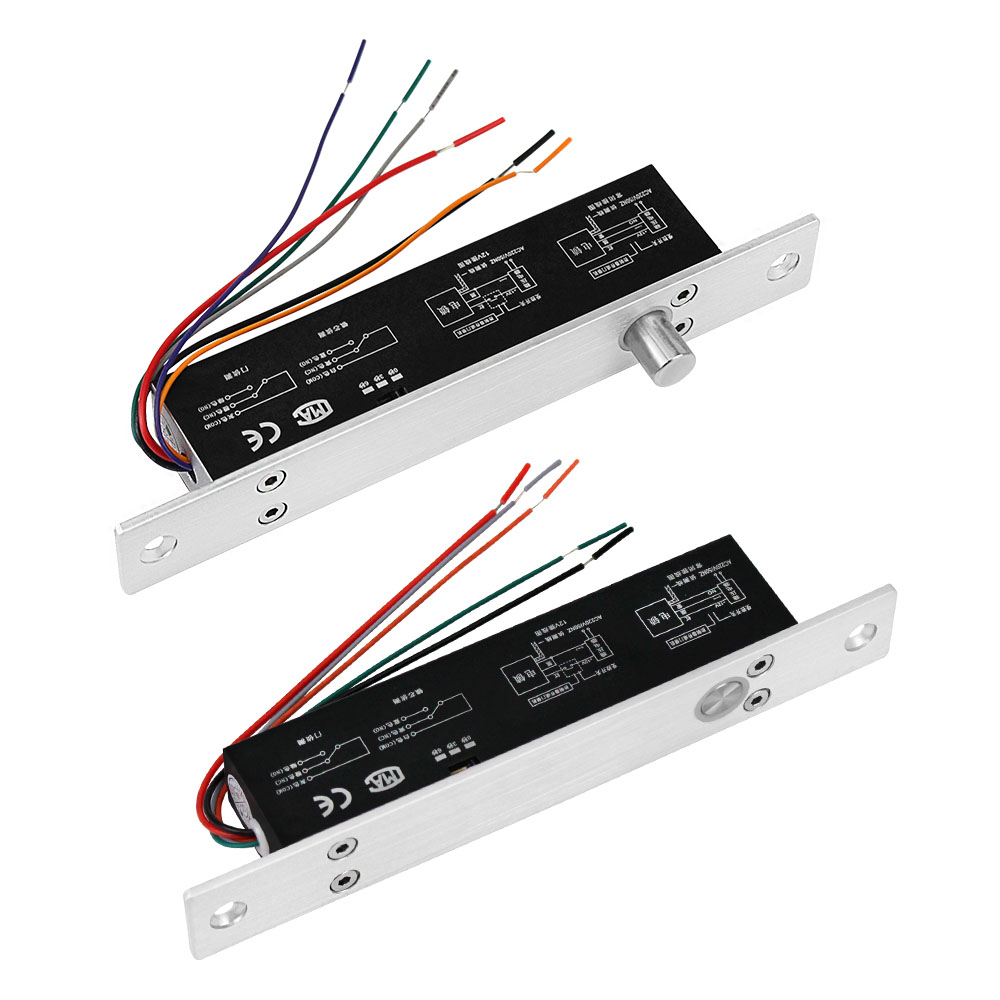

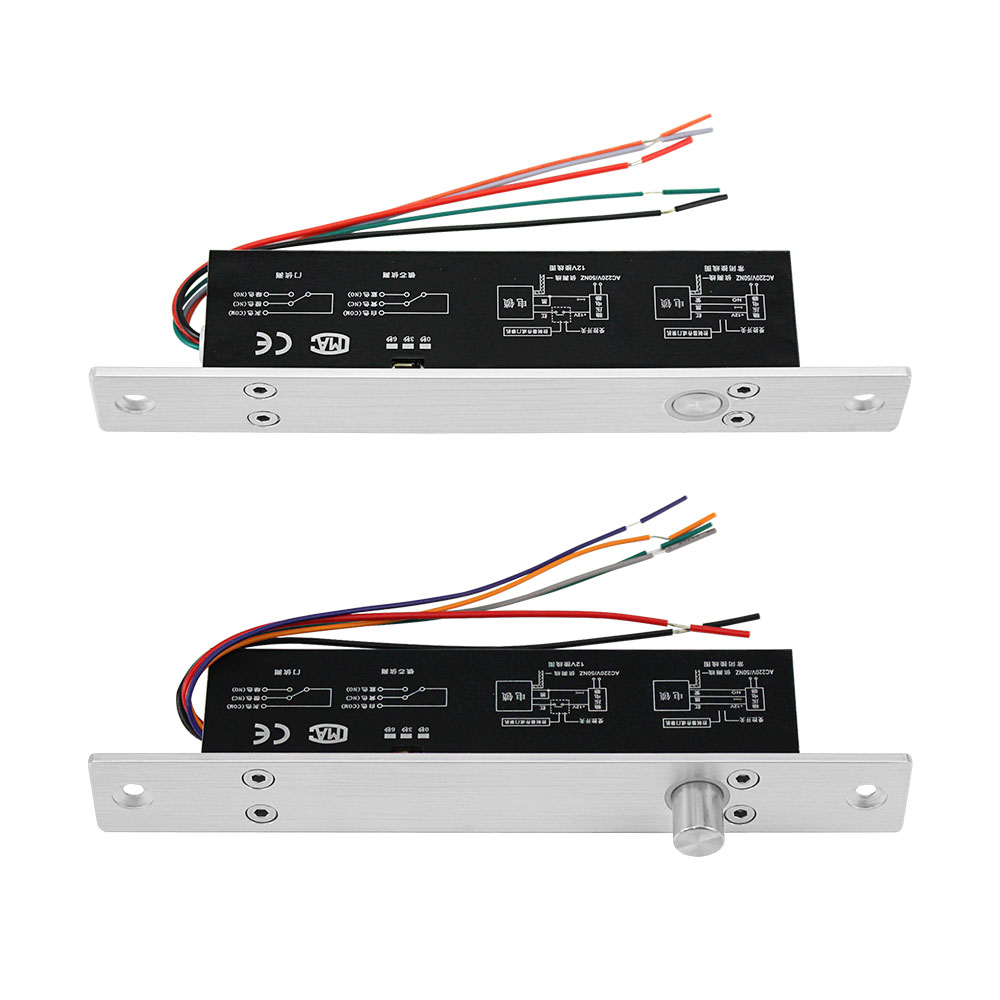

There are TWO different type Lock

5 Wires, NC Mode, Low Temperature, with Time Delay and Feedback Signal

6 Wires, NO Mode, Low Temperature, with Time Delay and Feedback Signal

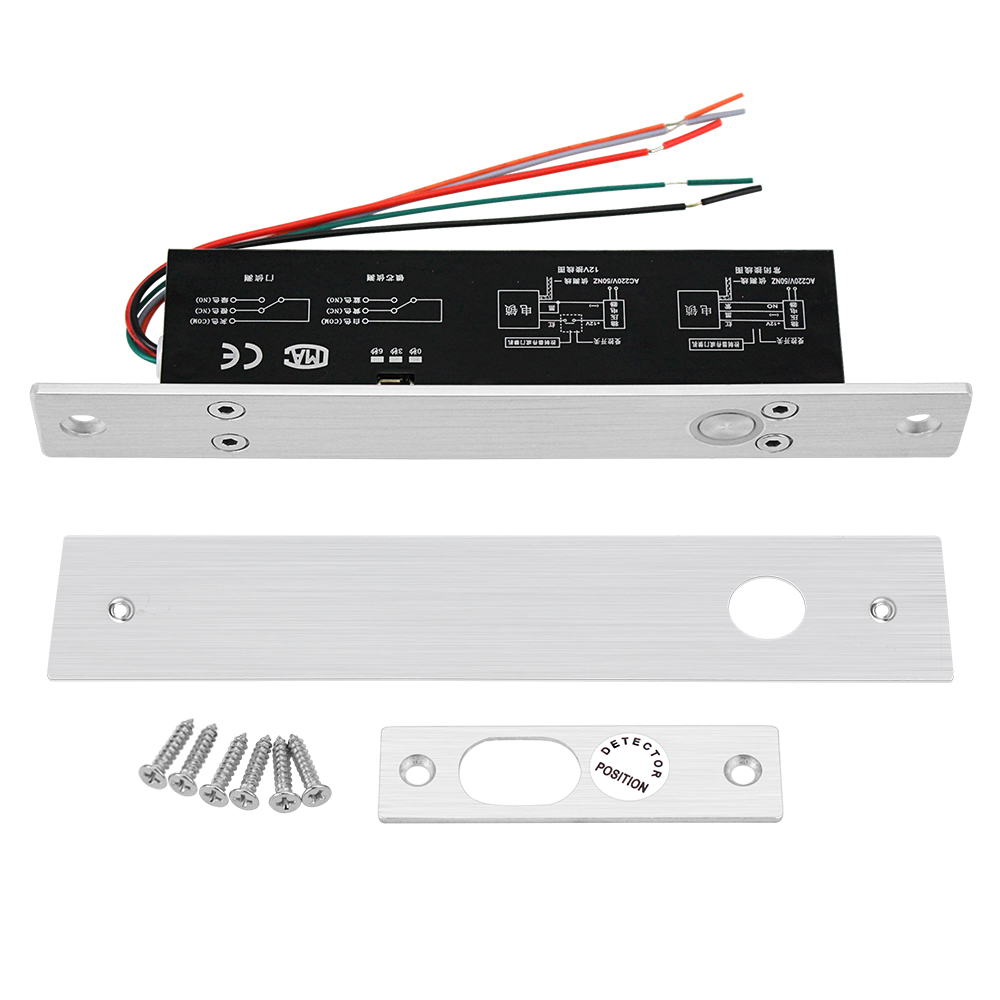

5 Wires, NC Mode, Low Temperature, with Time Delay and Feedback Signal
Model: L-5LineNC

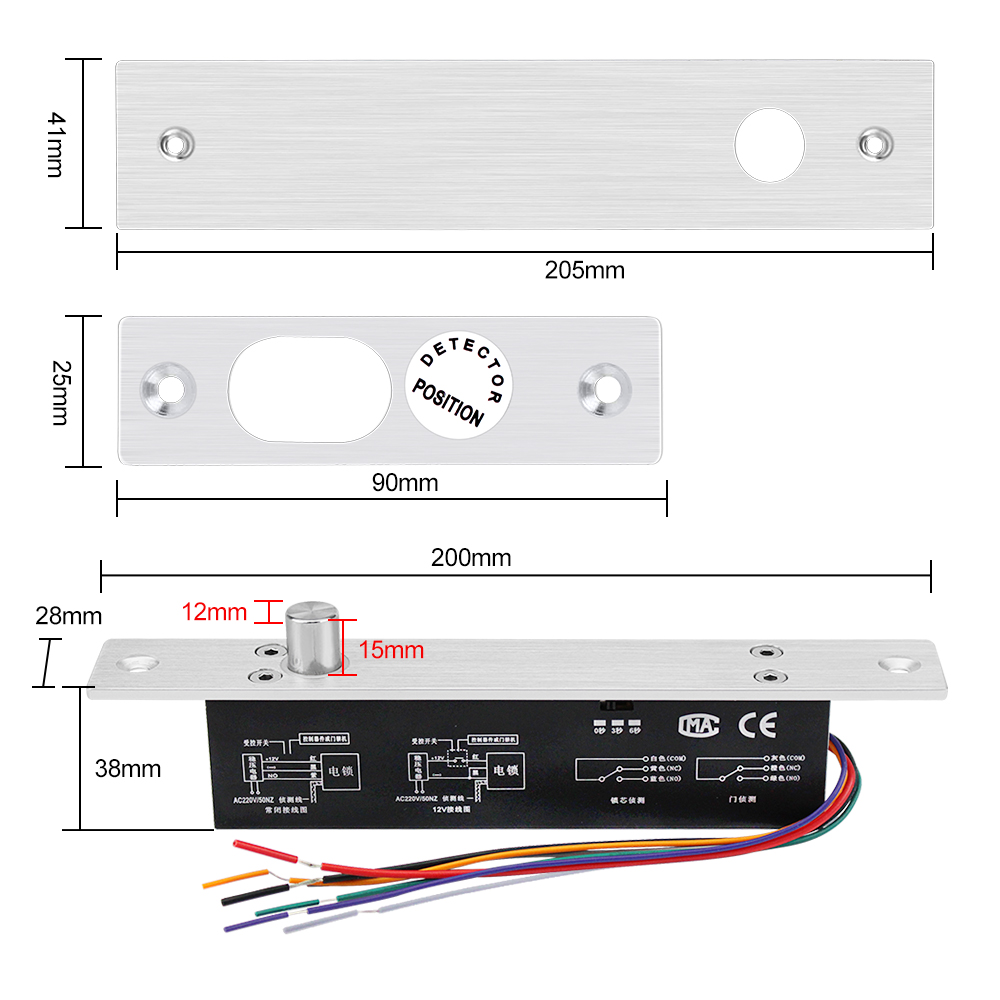

Size: 200x28x39mm (LxWxH)
Magnet plate: 90x24x3 mm (LxWxH)
Diameter of the lock tongue is about 12.5mm, and the extending length is about 15mm.
Material:  Aluminium Alloy
Working Voltage: DC12V
Lock Mode: Magnetic induction
Winging Type: continuous work type
Lock Mode: Magnetic induction
Time Delay: 0s, 3s, 6s adjustable
Secure Mode: Fail safe, NC type, locked when power on, unlocked when power off
Working Current: start state: 1100mA; standby state: 140mA
Feature: 5 wires, low temperature, with time delay, with feedback signal.

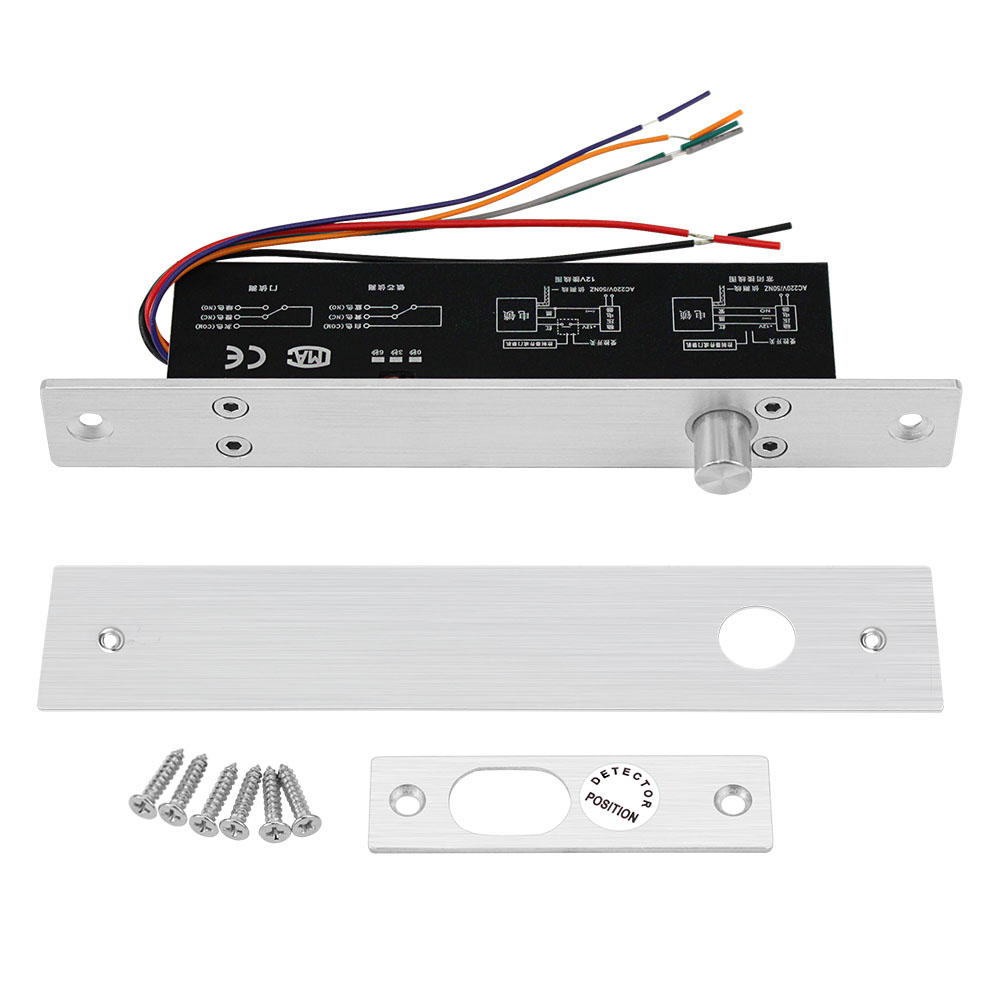

6 Wires, NO Mode, Low Temperature, with Time Delay and Feedback Signal
Model: L-6LineNO
Size: 200x28x39mm (LxWxH)
Magnet plate: 90x24x3 mm (LxWxH)
Diameter of the lock tongue is about 12.5mm, and the extending length is about 15mm.
Material:  Aluminium Alloy
Working Voltage: DC12V
Lock Mode: Magnetic induction
Winging Type: continuous work type
Lock Mode: Magnetic induction
Time Delay: 0s, 3s, 6s adjustable
Secure Mode: Fail-secure, NO type, locked when power OFF, unlocked when power ON.
Working Current: start state: 1100mA; standby state: 140mA
Feature: 6 wires, low temperature, with time delay, with feedback signal.
