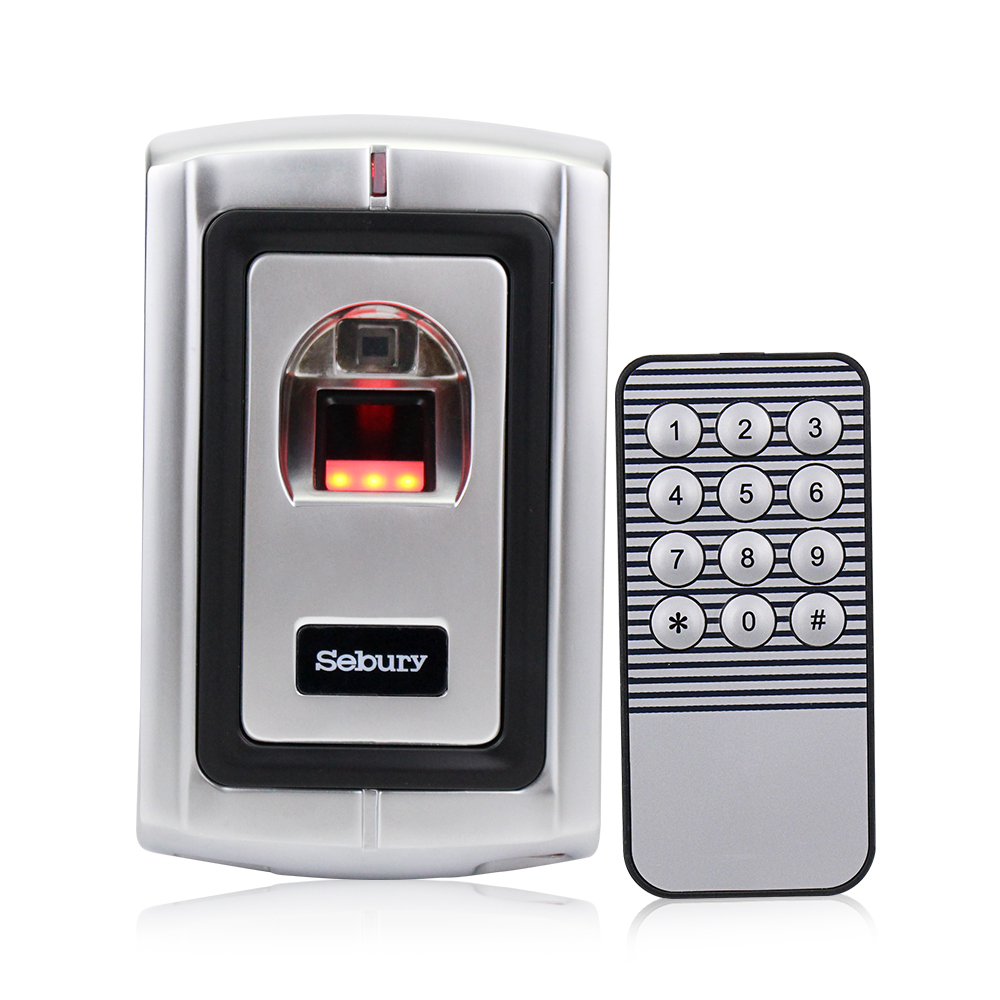

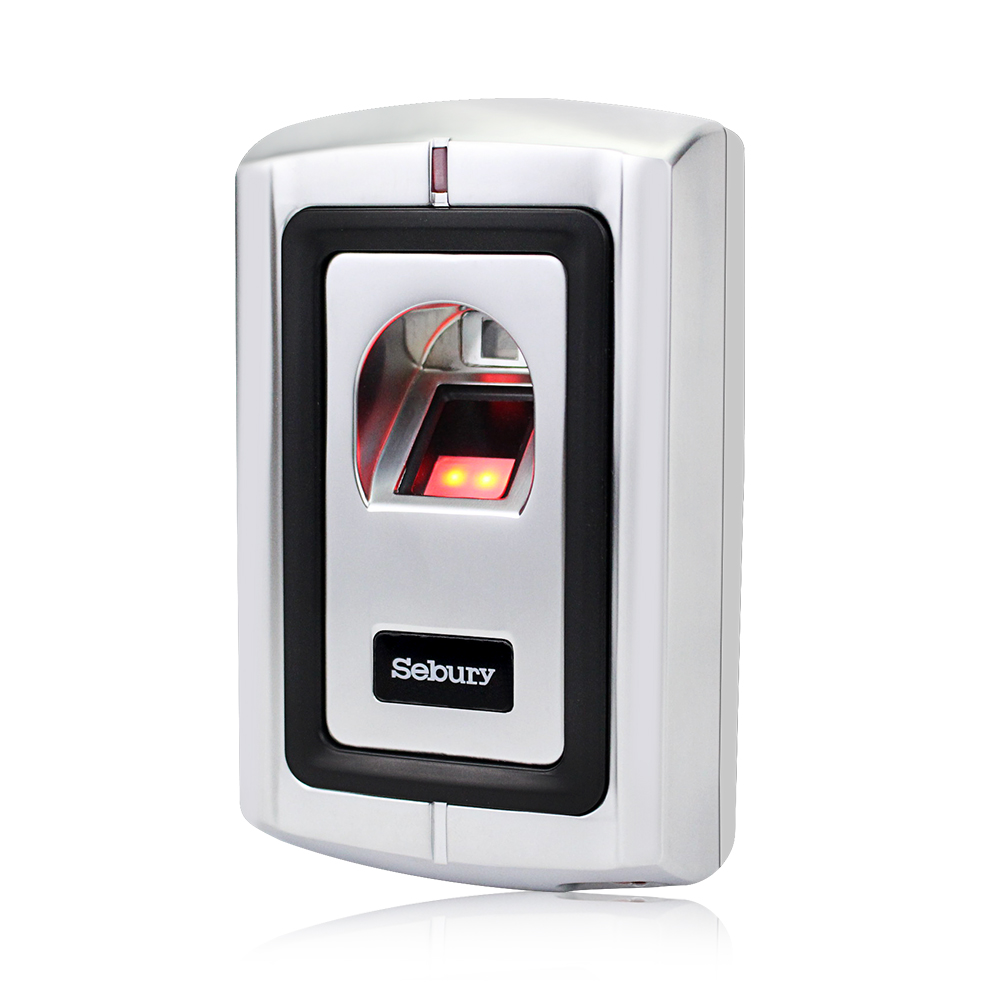

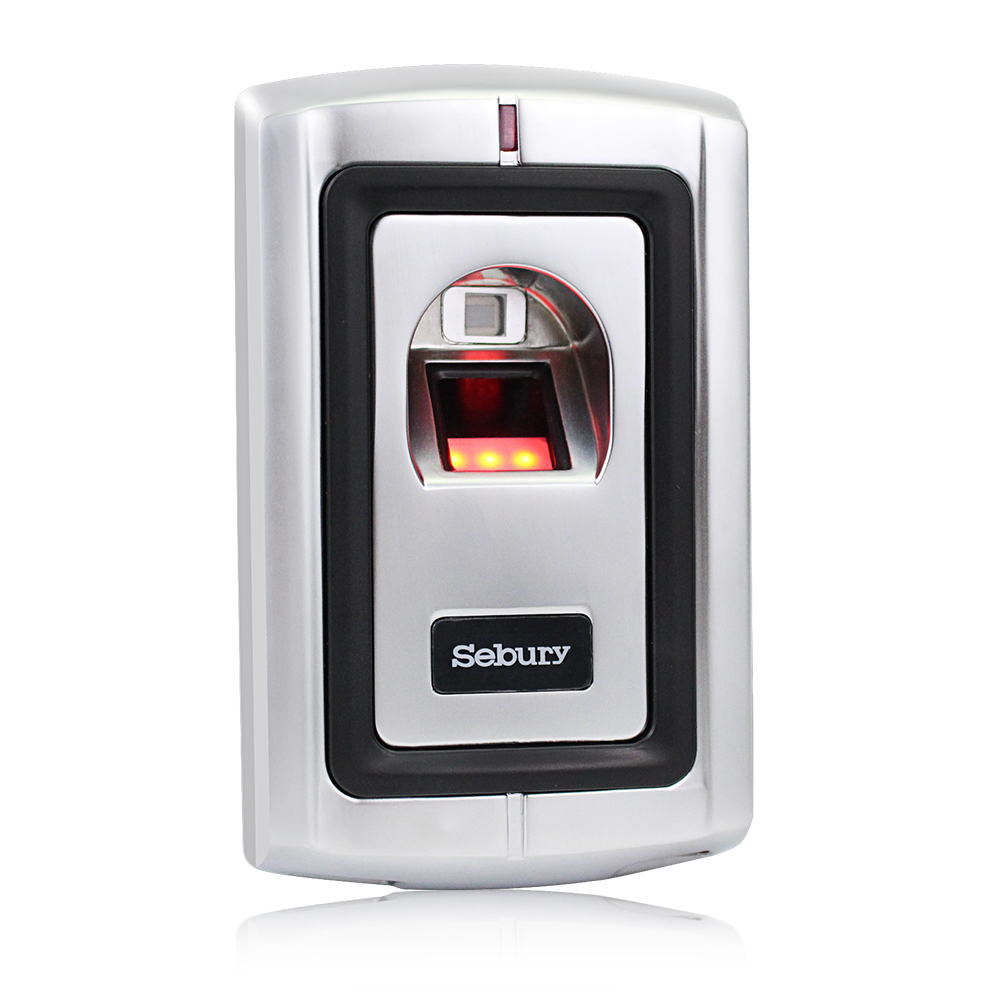

F007-II Fingerprint Metal Access Control System
Product Features：
> Metal structure, anti-vandal, simple & safe design
> The fingerprint identification technology has the advantages of unduplicated and unbreakable.
> Using the dark background imaging technique, make fingerprints are always-easy to be recognized in the variant light
conditions except the direct solar radiation.
> Can add/delete the users’ fingerprints by manager fingerprint very quickly.
> Infrared remote control for programming.
> Supports fingerprint verification
> Infrared remote control for programming Anti-magnetic, prevent opening door by magnetic illegally
> Built-in PIR(passive infrared)to wake up the device from sleep mode
> Wiegand 26 input & output
> Supports: anti-tamper, door magnetic alarm, safe mode sett.
Product Specifications：
Operating Voltage: DC12V±10%
Fingerprint Users:1000
Fingerprint input time:＜1s
Identification Time:＜1s
FAR:＜0.0001%
FRR:＜0.1%
Sleeping Current: ≤20mA
Idle Current: ≤80mA
Reading Range: 2-6cm
Reading Time: ≤0.1S
Door open time: 0-99s
Operating Temperature: -20~60℃
Operating Humidity: 20-95%(non-condensing)
Anti-static:15KV
Dimension: 115×70×33mm
