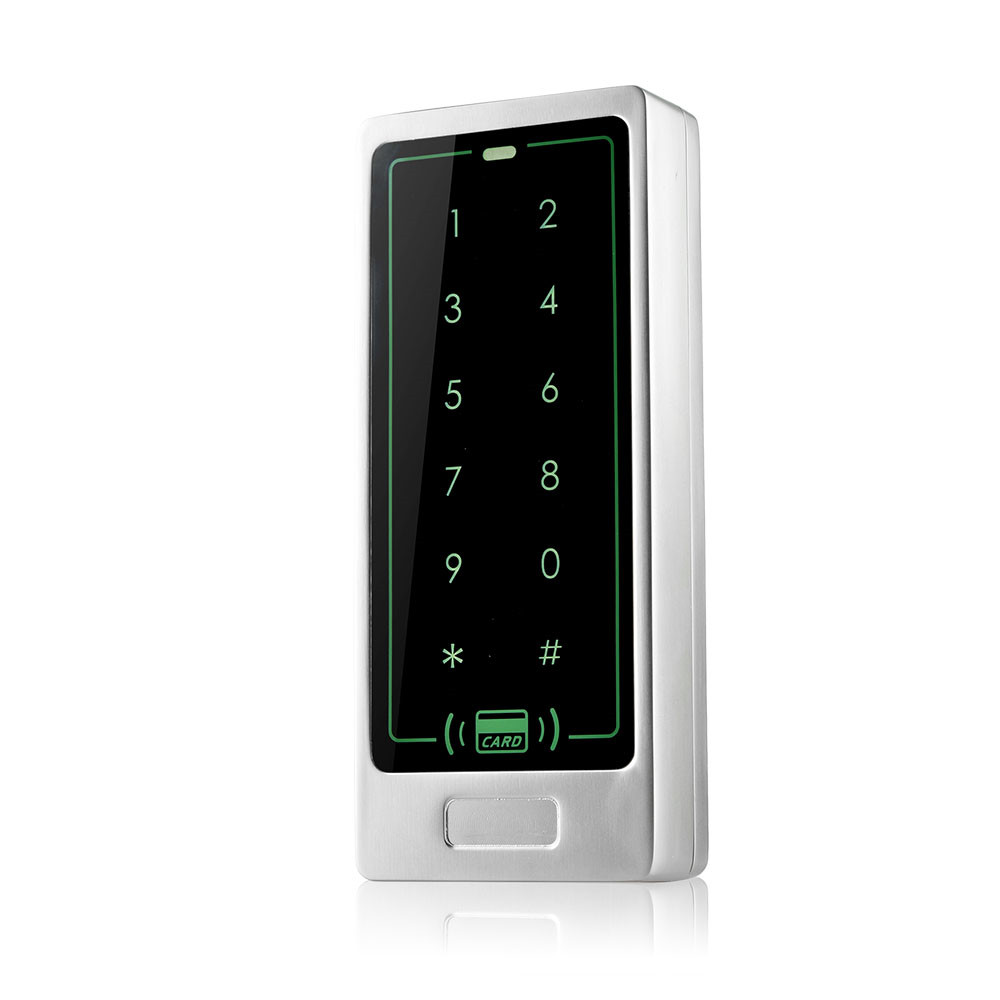

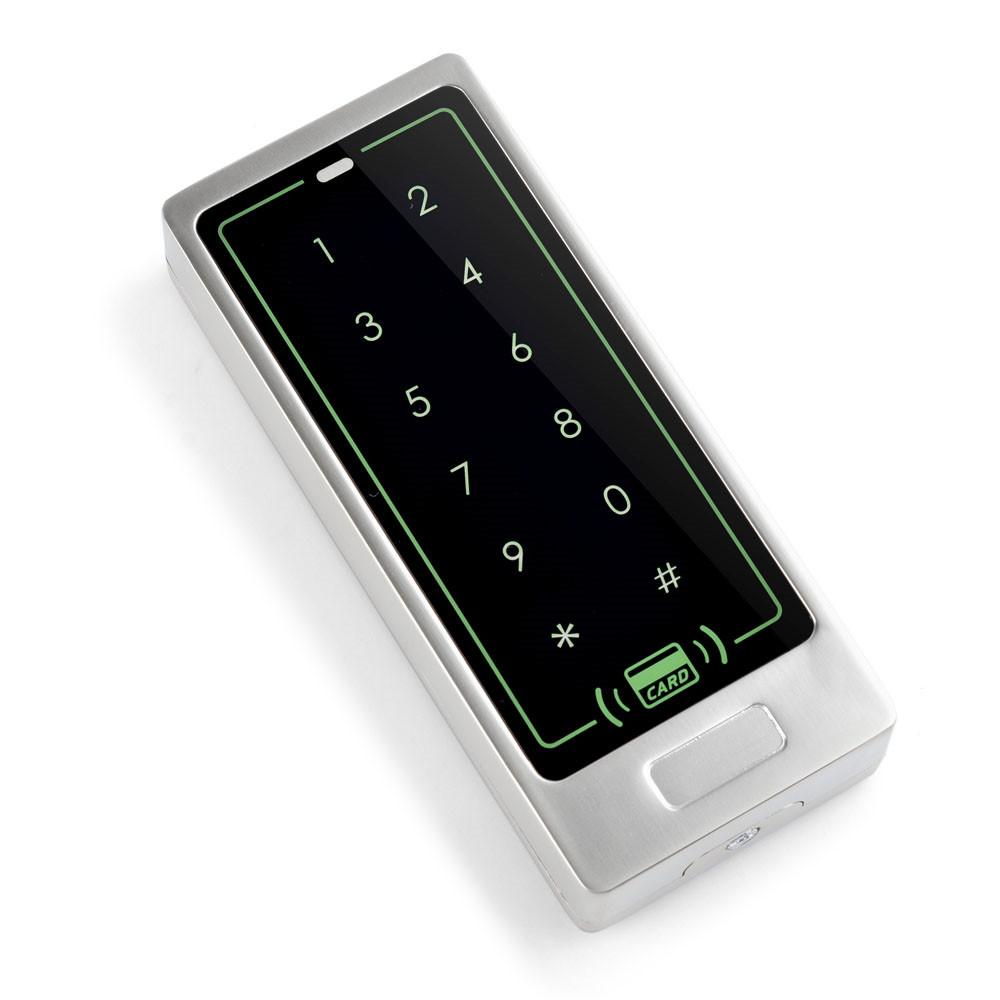

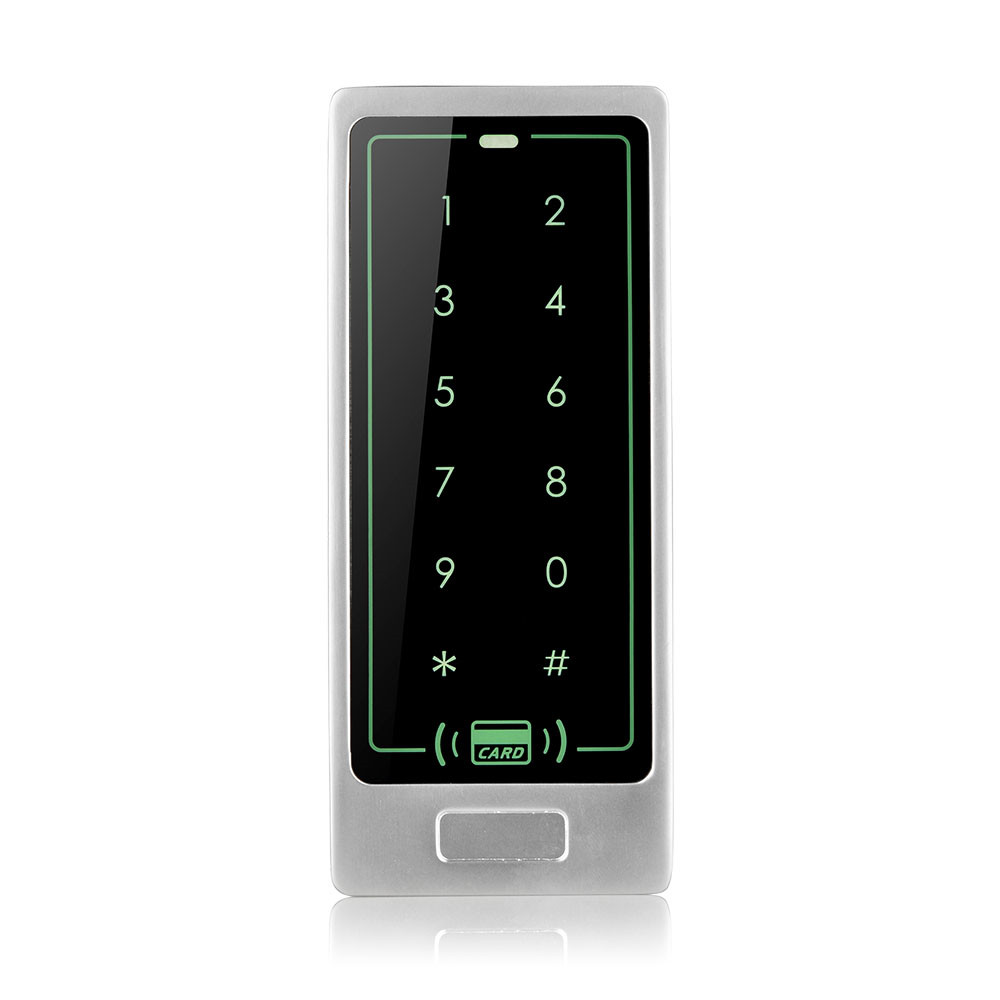

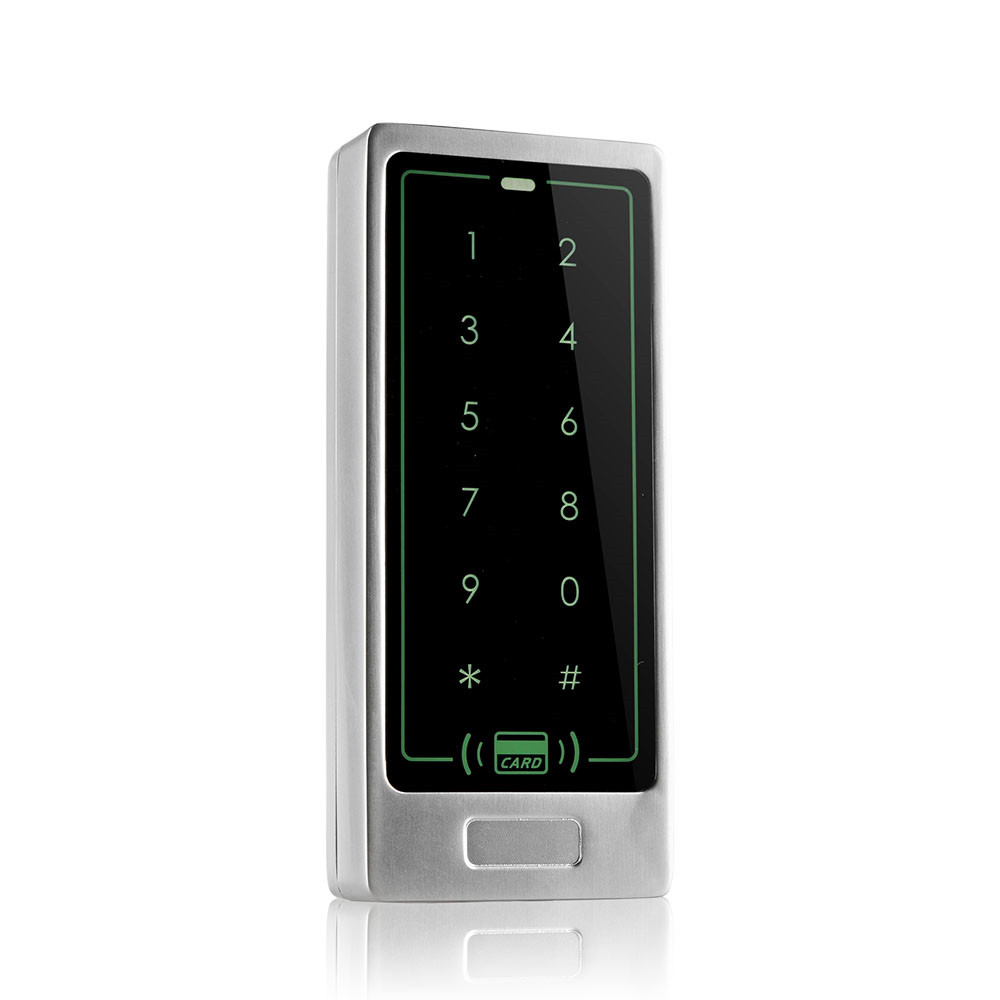

C10 Metal RFID Keypad Access Control

Product description:
INQUIRY

Product Features：

1) All-metal case design(zinc alloy). Organic glass panel (Acrylic touch screen).
2) 8000 users capacity for storing and reading to provide a powerful security, the high-grade built-in microprocessor
3) with strong anti-interference ability, high safety and reliability.
4) Support Data copy and backup between the same series of access control.
5) Circumscribed humanized tamper alarm function.
6) Can be used as card reader or standalone access controller.
7) External Wiggins dummy: WG26/34 input and output.
8) Can set up management cards (Deleted card and added card).
9) Active and passive lock signal output.
10) Imported double point relay output signal port.
11) Support three unlock method : password, RFID card, RFID card +password.
12) Extending function: external memory, tamper alarm, extended voice ect.
13) Has green backlight, can be see clear digit number even at dark.
14) Has a door bell button

Product Specification：

Material: aluminium alloy
Working frequency: 125KHz
Memory capacity: 8000 users
Unlock method: RFID card, password, RFID card + password
Password: 4 digit PIN code
Card identifying type: EM or EM compatible (EM4100, TK4100)
Card reader range: 0-10cm
Working Voltage: 12VDC
Work temperature: -20℃-70℃
Relative humidity: 0%~ 90%
Door bell function: support
Tamper Alarm function: support
Backlight function: support
Weigand Interface: WG26/34 input and output

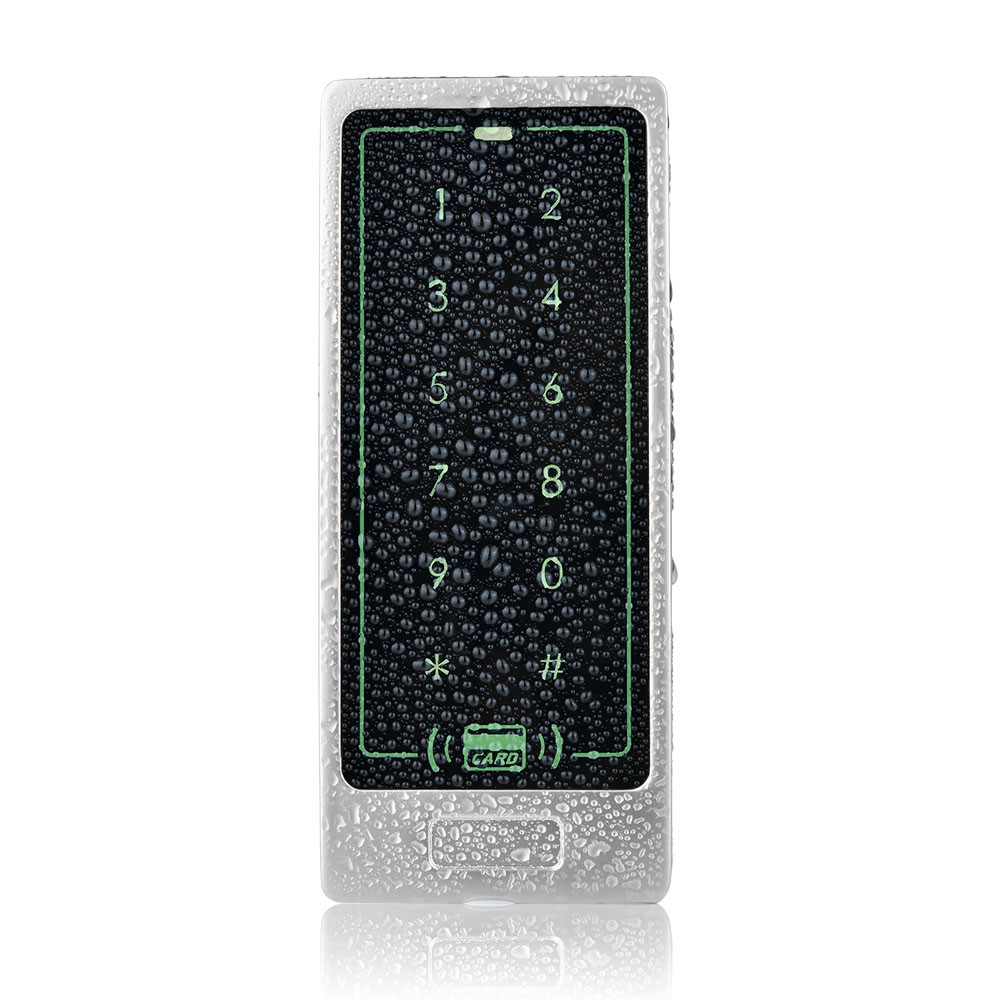

Waterproof: surface waterproof. Not IP65 waterproof, can't be used under the rain directly
Dimension: 126*53* 20mm
